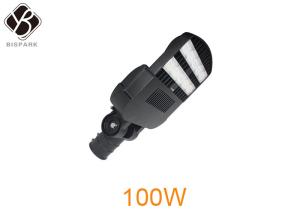

Energy Saving 3000K LED Roadway Light Fixtures Type Ⅲ 80*150° Beam Angle

Brand Name : BISPARK

Model Number : THOR-SL100

Certification : CE RoHS SAA UL DLC CB TUV NOM

Place of Origin : Guangdong,China

MOQ : negotiation

Price : 49-192 USD

Payment Terms : T/T, Western Union, D/A, D/P PayPal, MoneyGram

Supply Ability : 20000 PCS per Month

Delivery Time : 7-9 days for 1000pcs

Packaging Details : 1PC/Carton

Material : Die-casting Aluminum

Power : 100w

Input Voltage : 90-305V/480V AC

Chip : Lumileds SMD3030/5050

Driver : Meanwell/Inventronics

Beam Angle : Type Ⅲ 80*150°

Operating Temp. : -30-45 ℃

CCT : 2700-6500K

Luminous Efficiency : 150 or 170LM/W

IP Rate : IP66

Life Span : 61,000 Hours

Warranty : 7 Years

Color : Black color, or color can be customized

Others : OEM/ODM

Contact Now

Energy Saving Type III 3000K LED Street Light 100 Watt LED Roadway Lighting Fixtures

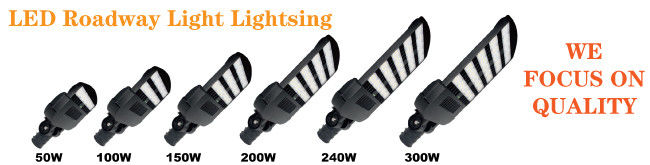

  • 50w to 300w Led Street Lights:
  • 50w 100W 120W 150W 200W 240W 300W optional and wide choice of optics and installation
  • 170lm/w High Efficiency, IP66, 10KV, 7-10 Years warranty,
  • Integrated 10KV surge protection, Integrated Power Off Switch, super smooth surface, snap type design, free-tool maintenance, labor cost saving.
  • Intelligent deisgn with LoRawan, Zigbee, photocell, motion sensor,etc

Energy Saving 3000K LED Roadway Light Fixtures Type Ⅲ 80*150° Beam Angle

THOR Series LED roadway lighting is reliable solution that delivers substantial energy savings compared with conventional fixtures. Suitable for street lighting, area lighting, highway lighting, parking lot lighting applications. Depending on the area, you can choose 50-300w led street light to replace 125w-900w HPS and MH lamps.

Newly developed LED Street/Area Light has an industry-leading 150LM/W for high efficiency and reliability. With IP66 waterproofing and IK10 10/20KV lightning protection, LED roadway lighting can work in harsh environments and deliver outstanding performance.

THOR Series LED roadway lighting/Area uses ' high-quality Lumileds 3030/5050 light source and has a professional power supply design that is extremely durable and safe. The configured Photocell can minimize the cost of light for energy saving and environmental protection. Easy to maintain, you can enjoy the best lighting and safety.

Item Number NL-THOR-SL50 THOR-SL100 THOR-SL150 THOR-SL200 THOR-SL240 THOR-SL300
Wattage 50W 100W 150W 200W 240W 300W
Lumen Output 8500lm 17000lm 25200lm 34000lm 40800lm 45000lm
LED Quantity 96PCS 144pcs 192pcs 252pcs 324pcs 432pcs
Size(MM) L471*W320*H88 542*320*88 613*320*88 684*320*88 755*600*88 826*600*88
LED Chip Lumileds 3030/5050
Luminous Efficacy 150-170LM/W
CCT 2700K-6700K
CRI ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle T3(80*140°) / 30°/60°/90°
IP Rating IP66
Working Temperature -35℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty 7 years
Lifespan ＞50,000hrs
Material Die-casting Aluminum housing+PC lens

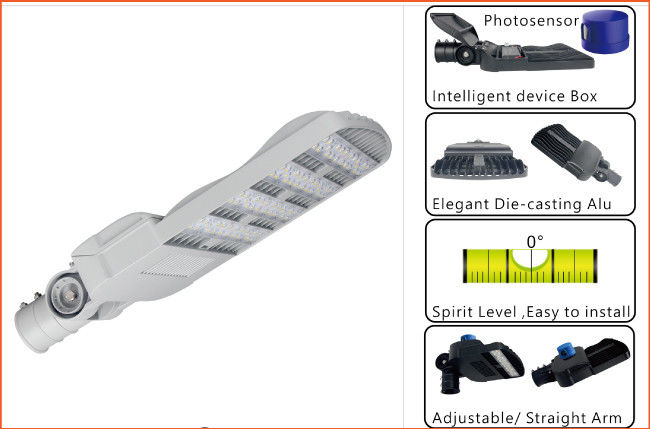

1. FEATURES:


• Basic, Compact design & High performance design
• Aluminum (ADC12) die-casting molding;
• The surface is treated with black spray powder added with metal powder specially for outdoor use, which can increase the concave and convex feeling of frosting and expand heat dissipation; area Lens surface frosting treatment, suitable for 5050/3030 lamp beads, different lenses for different environments;
• High-quality components,Complete illumination across the entire roadway
• Wide choice of optics for increased application efficiency
• Meet the 48-hour qualification requirements of salt spray test (GB/T 2423.17-2008)
• Meet the requirements of continuous exposure for 28 days for solar radiation test (GB/T 2423.24-1995)
• Dramatic energy savings, Safe for industrial applications

Energy Saving 3000K LED Roadway Light Fixtures Type Ⅲ 80*150° Beam Angle

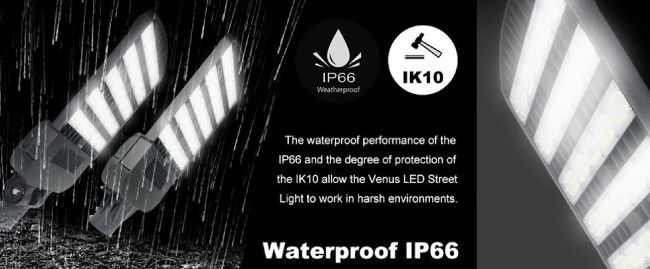

2. IP66 IK10
Energy Saving 3000K LED Roadway Light Fixtures Type Ⅲ 80*150° Beam Angle

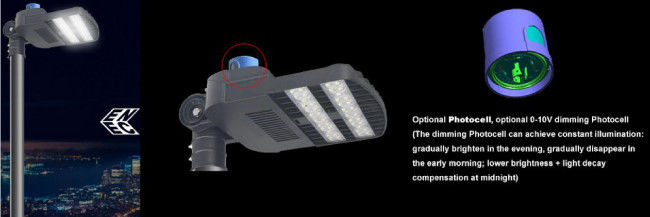

3. Intelgent LED Roadway lights
Energy Saving 3000K LED Roadway Light Fixtures Type Ⅲ 80*150° Beam Angle
4. Application

Energy Saving 3000K LED Roadway Light Fixtures Type Ⅲ 80*150° Beam Angle
